306Ah/314Ah
Capacity
-
4.073MWh
5.015MWhRated Energy
-
NFPA 855
Certificate
-
Liquid Cooled
Cooling Method
Product Introduction

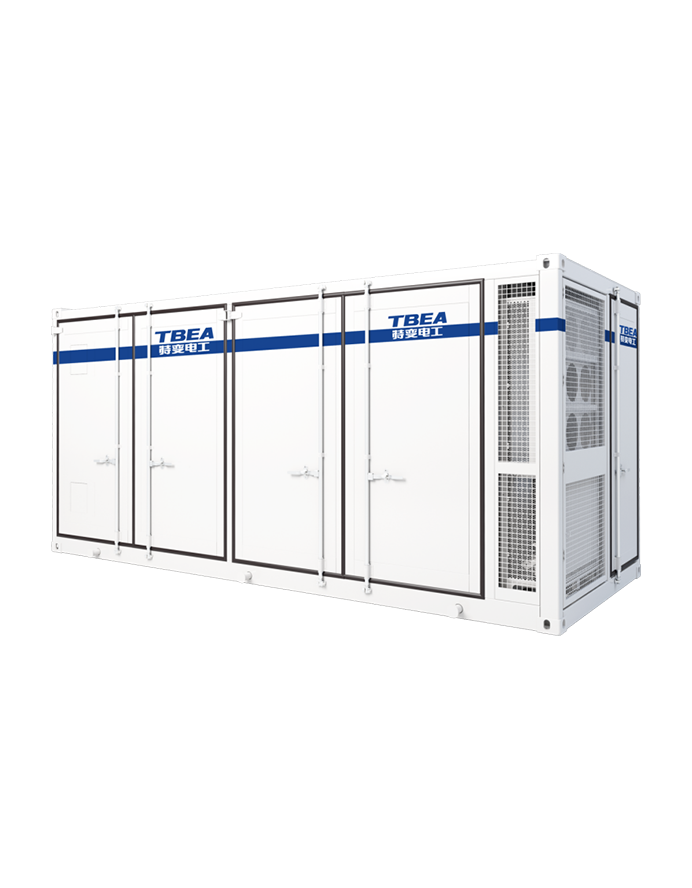

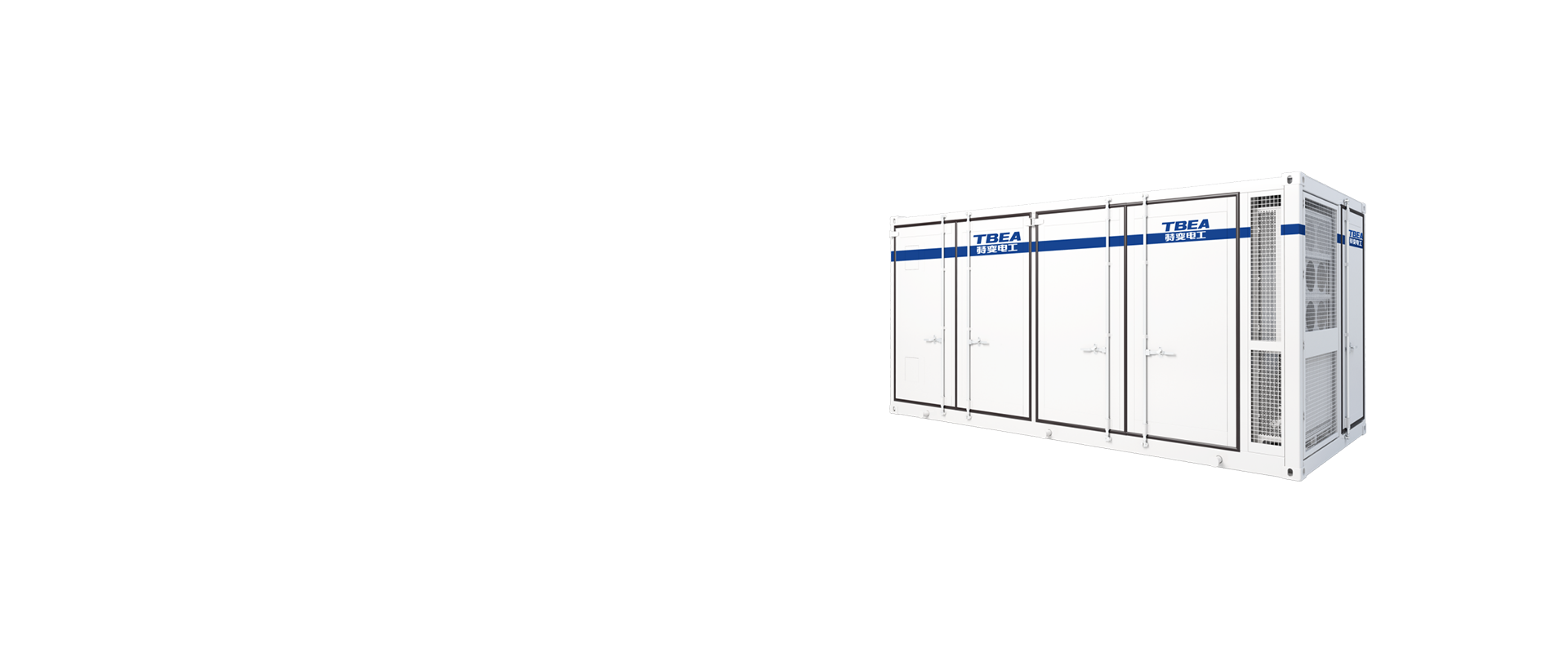

The 5MWh liquid cooling container (TB-S2000) adopts multi-level electrical protection, compartmentalized physical isolation, and features pack-level detection and multiple pack spraying. It meets IP55 protection and C5 corrosion resistance, suitable for various harsh working conditions. It can be side-by-side spliced and flexibly deployed. Through refined thermal management strategies, it ensures a Rack-level temperature difference of ≤ 3℃ and increases the cycle life by 10%. It has online panoramic monitoring of massive data, enabling Intelligentization data analysis and intelligent early warning.
Product Advantage
-
-
Safe
Multiple fuse protection design.
Advance lightning/fire protection design.
-
Reliable
Adaptive thermal management.
Easy extension, 98% availability.
-
Flexible
4/5MWh with 20ft container design.
Convenient transportation and installation.
-
Efficient
Temperature difference ≤ 3℃.
Shoulder-to-shoulder splicing.
-
-
Safe
Multiple fuse protection design.
Advance lightning/fire protection design.
-
Reliable
Adaptive thermal management.
Easy extension, 98% availability.
-
Flexible
4/5MWh with 20ft container design.
Convenient transportation and installation.
-
Efficient
Temperature difference ≤ 3℃.
Shoulder-to-shoulder splicing.
Core Parameters
-
-
3.2V / 3.2V
Nominal Voltage
-
LFP306Ah / LFP314Ah
Cell Specification
-
Gas + Water
Fire suppression
-
407.347kWh / 417.996kWh
Nominal Capacity
-
4.073MWh / 5.015MWh
Rated Energy
-
1331.2V
Rated Voltage
-
1164.8V~1497.2V
Voltage Range
-
Liquid cooled
Cooling method
-
IP55
IP Rating
-
6058*2896*2438 mm
Dimension (W*H*D)
-
≤36T / ≤40T
Weight
-
IEC61000, IEC62477, IEC62619, IEC63056, UL9540, CE, NFPA 855
Testing and Certification
-
-
