99.02%
Max. Efficiency
-
300kW@51°C
330kW@40°C
363kW@30°COutput Power
-
IP66
Degree of Protection
-
Transformerless
Topology
Product Introduction

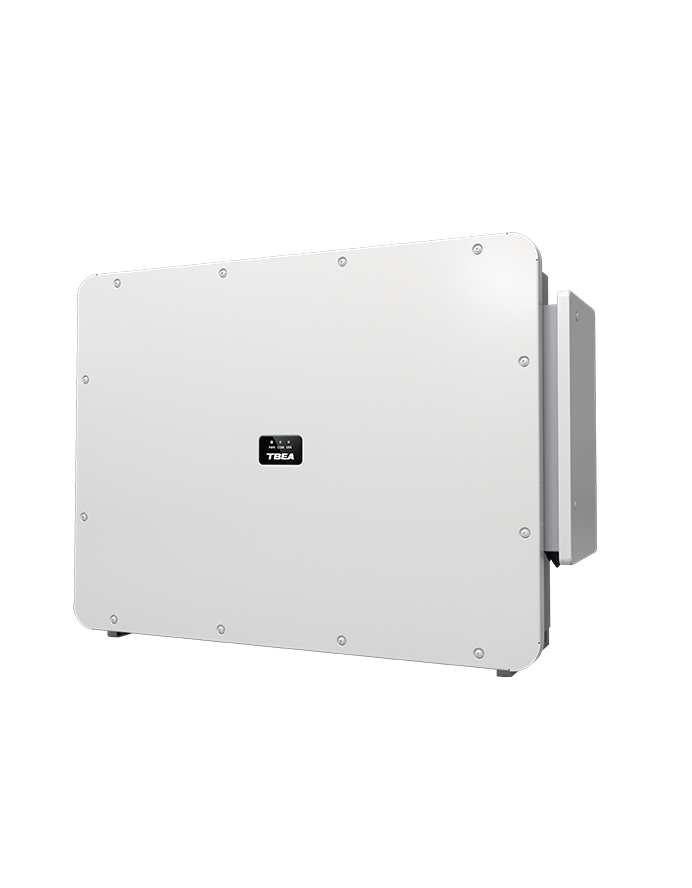

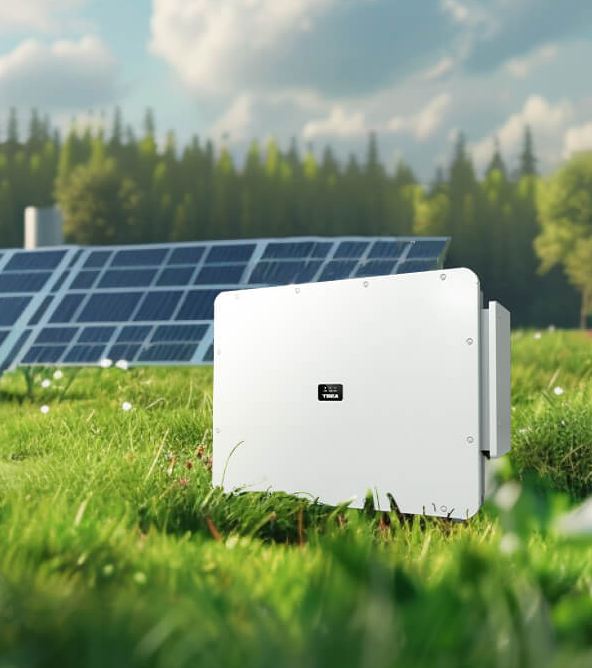

TBEA Xi'an Electric Technology has constructed a smart energy solution for new energy photovoltaic power stations centering on the TS300/330/360KTL-HV-C1 string inverter.
This solution, by applying adaptive algorithms and grid-forming technologies, can automatically match the grid impedance and effectively support the grid in an extremely weak grid environment Meanwhile, it possesses excellent outdoor protection capabilities and can adapt to various application scenarios. The maximum conversion efficiency reaches 99.02%, and it is perfectly compatible with 182/210 high-efficiency double-sided modules, ensuring the high-efficiency power generation of photovoltaic power stations.
With the excellent characteristics and innovative designs of being grid-friendly, safe, reliable, efficient in power generation, and intelligent in operation and maintenance, it can create a highly efficient, intelligent, and reliable photovoltaic system for customers and bring them a better product experience.
Product Advantage
-
-
Grid-Friendly
Specific sub-harmonic suppression technology to effectively reduce current harmonics.
Equipped with SVG function to support the power grid.
Rapid active power response to meet the dispatching requirements of power plants.
-
Safe and Reliable
Superior overall protection performance to adapt to various harsh environments (IP66 protection level, C5 anti-corrosion level).
Intelligent zoned heat exchange and dissipation design.
-
High-Efficiency Power Generation
Intelligent MPPT control strategy with a maximum conversion efficiency of 99.02%.
One MPPT for every 4/5 string inputs, perfectly matching various mainstream photovoltaic modules and effectively reducing the impact of string mismatch.
Excellent temperature derating characteristics to reliably ensure power generation in high-temperature environments.
-
Intelligent O&M
High-precision I-V curve scanning, analysis and diagnosis function.
PID protection function to safeguard the health of modules.
Active fire protection function to build a safety barrier for power plants.
Intelligent dust removal boosts O&M efficiency.
-
-
Grid-Friendly
Specific sub-harmonic suppression technology to effectively reduce current harmonics.
Equipped with SVG function to support the power grid.
Rapid active power response to meet the dispatching requirements of power plants.
-
Safe and Reliable
Superior overall protection performance to adapt to various harsh environments (IP66 protection level, C5 anti-corrosion level).
Intelligent zoned heat exchange and dissipation design.
-
High-Efficiency Power Generation
Intelligent MPPT control strategy with a maximum conversion efficiency of 99.02%.
One MPPT for every 4/5 string inputs, perfectly matching various mainstream photovoltaic modules and effectively reducing the impact of string mismatch.
Excellent temperature derating characteristics to reliably ensure power generation in high-temperature environments.
-
Intelligent O&M
High-precision I-V curve scanning, analysis and diagnosis function.
PID protection function to safeguard the health of modules.
Active fire protection function to build a safety barrier for power plants.
Intelligent dust removal boosts O&M efficiency.

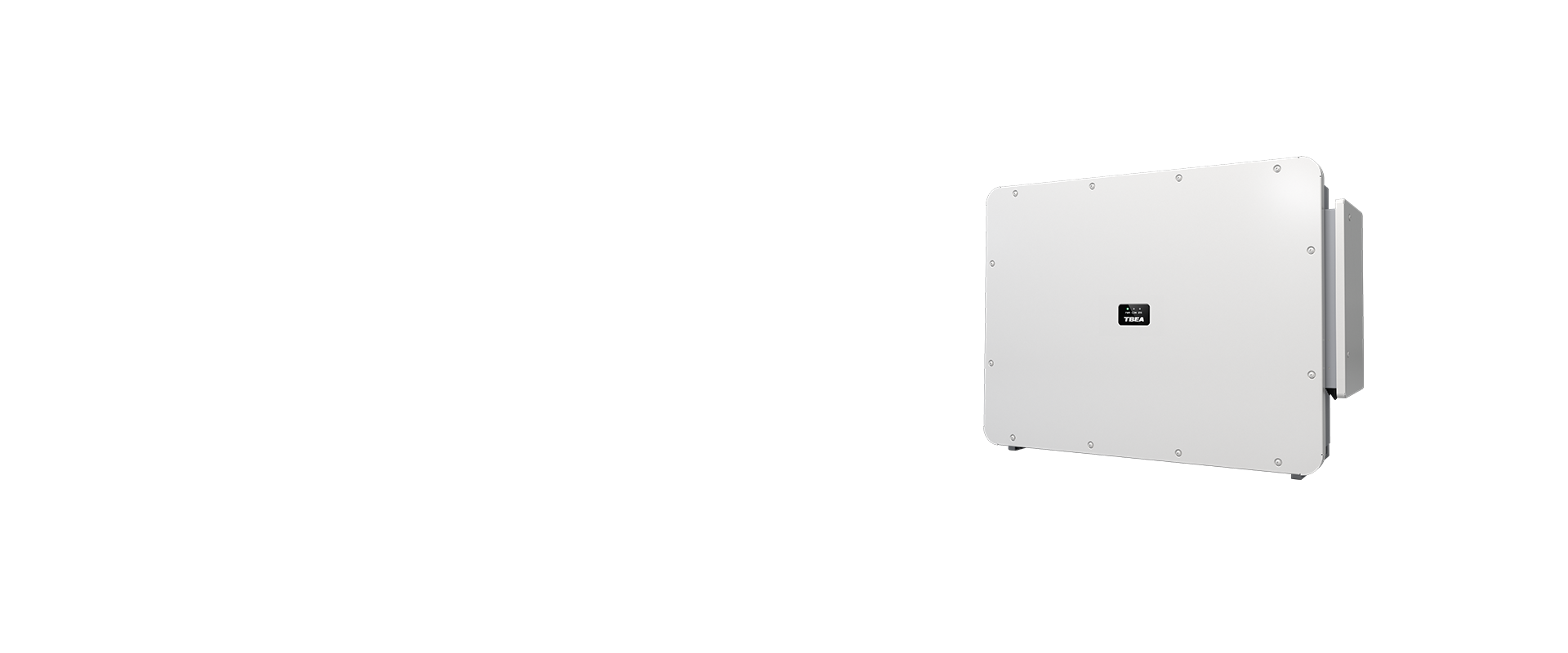

Core Parameters
-
-
LED, WIFI+APP
Display
-
99.02%
Max. efficiency
-
75A
Max. input current per MPPT
-
1500V
Max. input voltage
-
6
Number of MPPT
-
300kW@51°C
330kW@40°C
363kW@30°COutput power
-
800V / 3W+PE
Nominal output voltage
-
1120mmx820mmx365mm
Dimensions (WxHxD)
-
110kg
Weight
-
IP66
Degree of protection
-
Transformerless
Topology
-
-
LED, WIFI+APP
Display
-
99.02%
Max. efficiency
-
75A
Max. input current per MPPT
-
1500V
Max. input voltage
-
6
Number of MPPT
-
300kW@51°C
330kW@40°C
363kW@30°COutput power
-
800V / 3W+PE
Nominal output voltage
-
1120mmx820mmx365mm
Dimensions (WxHxD)
-
110kg
Weight
-
IP66
Degree of protection
-
Transformerless
Topology
