97.34%
Max. Efficiency
-
IP66
Protection Grade
-
less than 10ms
Switch Time
-
Remote diagnosis and update
Intelligent O&M
Product Introduction

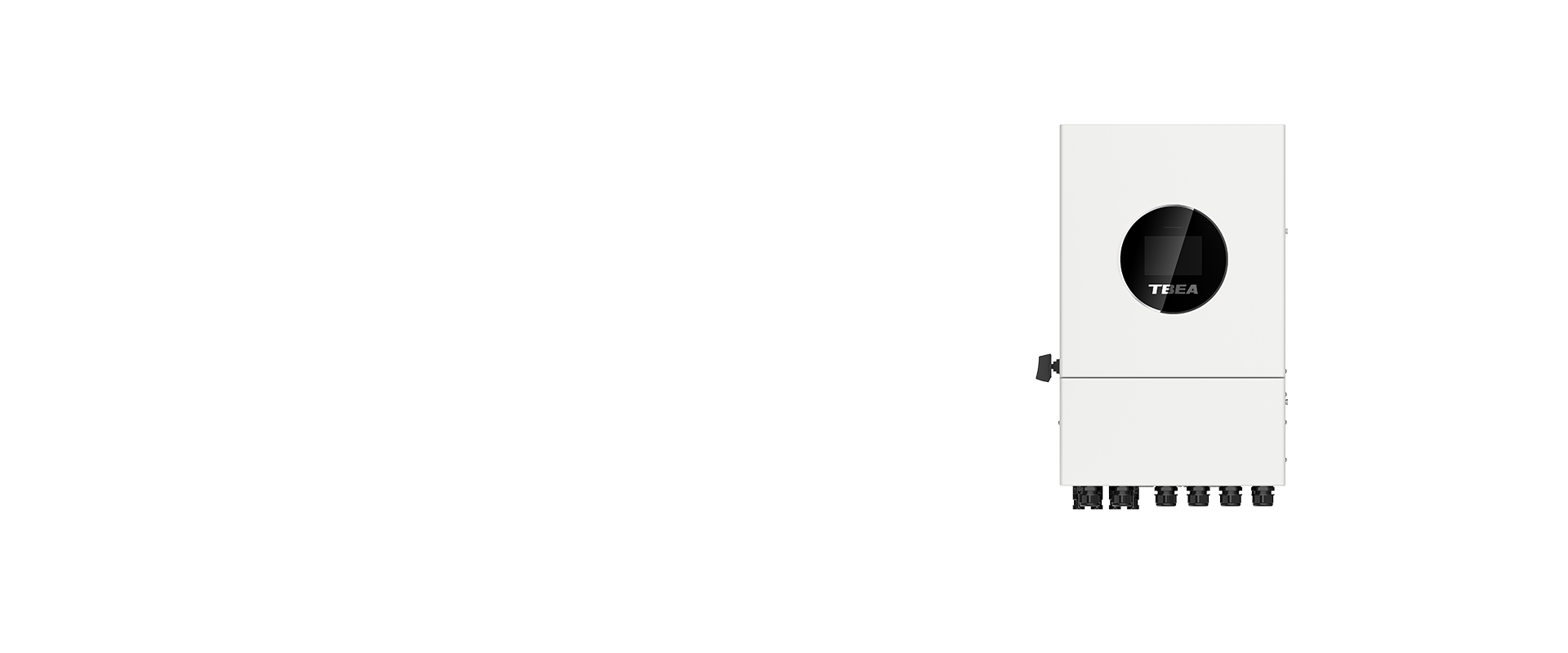

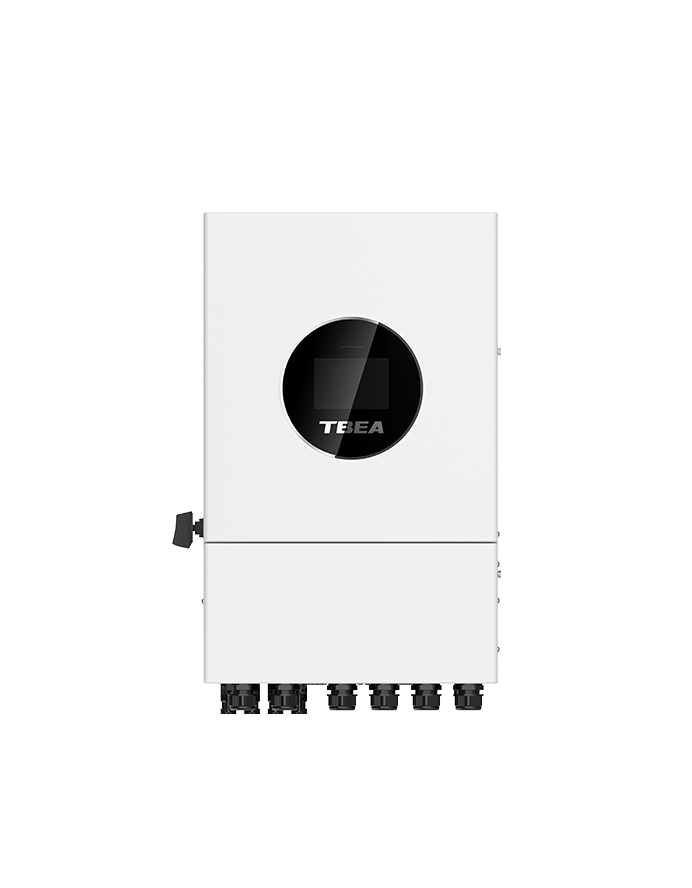

TH5~12K-TLA01 1000V three-phase Hybrid inverter is to convert the DC electricity generated by the PV panels into AC electricity and feed it into the grid or battery. This series of products can cooperate with battery and diesel generator, then provide 24h power supply.This series is primarily suited for residential and villas with high electricity prices and important loads.
Product Advantage
-
-
Best Benefits
160V start-up voltage
Wide range of MPPT voltage
-
Safe and Reliable
＜10ms UPS-level switching
Easy setting of smart working modes
-
Intelligent Friendly
Remote diagnosis & update
24-hour intelligent energy management
-
-
Best Benefits
160V start-up voltage
Wide range of MPPT voltage
-
Safe and Reliable
＜10ms UPS-level switching
Easy setting of smart working modes
-
Intelligent Friendly
Remote diagnosis & update
24-hour intelligent energy management
Core Parameters
-
-
97.34%
Max. Efficiency
-
16A/ 16A(TH5~6K-TLA01);
26A/ 26A(TH8~12K-TLA01)Max. Input Current (A)
-
1000
Max. Input Voltage(V)
-
2
No. of MPPT
-
1 (TH5~6K-TLA01);
2 (TH8~12K-TLA01)Max. Input Strings per MPPT
-
51.2V (40v~60V)
Battery voltage
-
＜10ms
Switch time
-
220/230
Nominal Output Voltage(V)
-
350*650*262
Dimension(W*H*Dmm)
-
35
Weight(kg)
-
-
