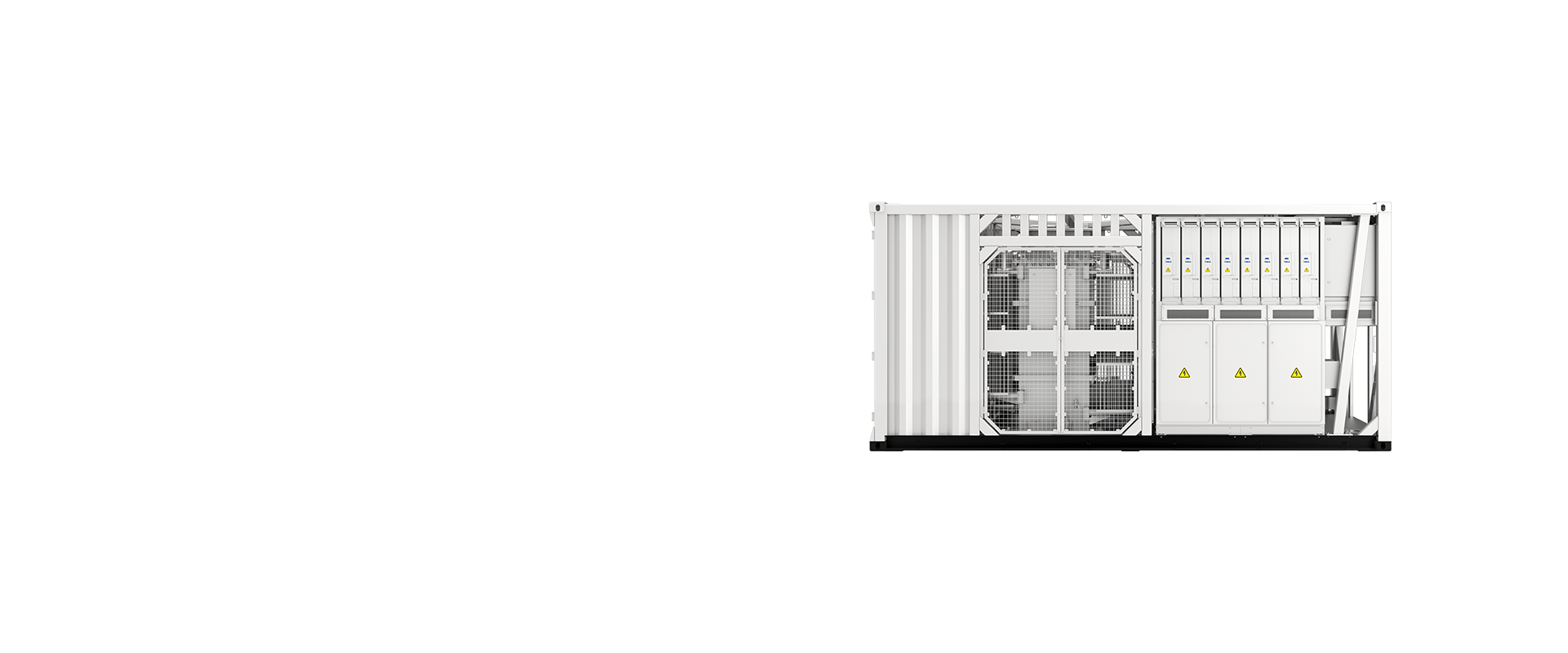

TE4100/5000KT-EL

Download PDF

4100kVA
5000kVA

Rated Transformer Capacity
236.5kW*20
236.5kW*24

Max. Apparent Power
110% overload

Overload Capacity
Smart Air Cooled

Cooling method

Product Introduction

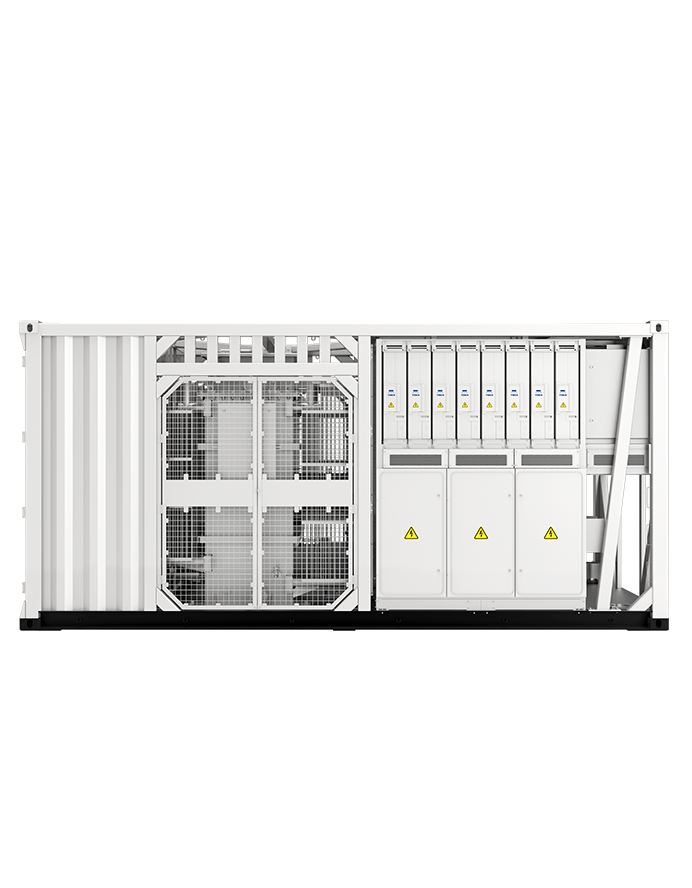

The String PCS&MV Power Station integrated of module PCS, MV transformer, and RMU, supporting long-term overload at 1.1 times, 2min overload at 1.2 times, and 10s overload at 1.5 times. The single-rack management enhances the BESS discharge capacity, thereby descreasing the LCOS by 6.5%. It supports grid-forming, enabling stable operation from extremely weak grid conditions with SCR=1.0 to SCR=40 scenarios. The String PCS&MV Power Station integrated unit utilizes a fiber optic communication system for our company controller, which features high transmission rates, low latency, and strong coordinated control.

Download PDF

Product Advantage

- Flexible and Friendly

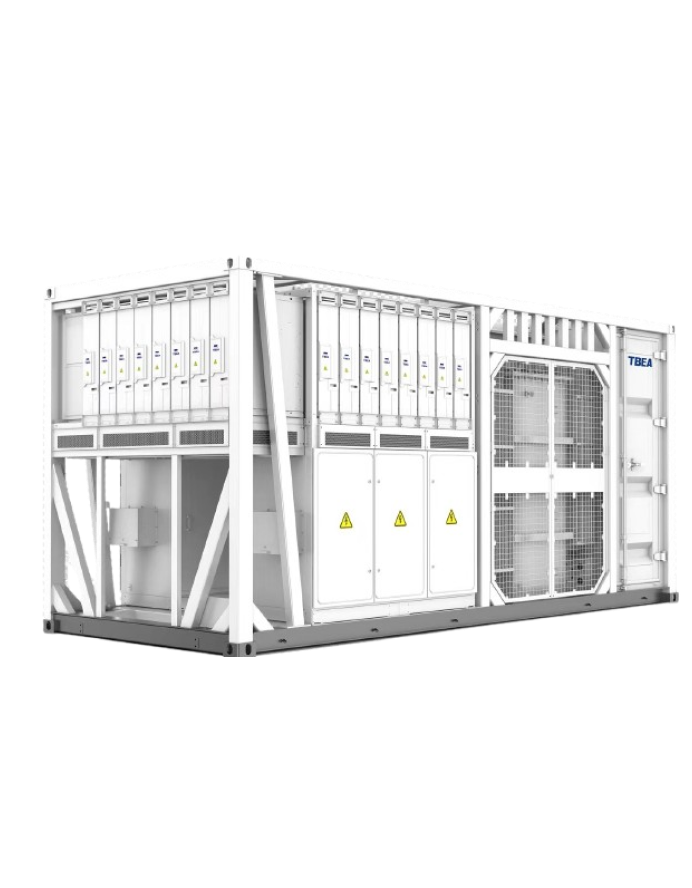

  Integrated with PCS, transformer and RMU in 20 ft container.
  Convenient transportation and installation.
- Safe and Reliable

  Single rack management of battery.
  Up to 24 multi-machines coordinated control.
- Grid Support

  LVRT/HVRT, weak grid support.
  Grid-forming, black start.
- High Protection

  IP55 protection rating.
  C5 corrosion protection.

Flexible and Friendly

Integrated with PCS, transformer and RMU in 20 ft container.
Convenient transportation and installation.
Safe and Reliable

Single rack management of battery.
Up to 24 multi-machines coordinated control.
Grid Support

LVRT/HVRT, weak grid support.
Grid-forming, black start.
High Protection

IP55 protection rating.
C5 corrosion protection.

Core Parameters

- 4100kVA/5000kVA

  Rated Transformer Capacity
- -30°C~55°C

  Operating Temperature Range
- <3%

  THD (Rated Power)
- 236.5A*20 / 236.5A*24

  Max. DC Curent
- 50/60Hz

  Rated AC Grid Frequency
- C4/C5

  Corosion Prevention
- -1 (Lagging)-1 (Leading)

  Power Factor Range
- Smart Air Cooled

  Cooling method
- IP55

  IP Rating
- 6058*2896*2438mm

  Dimensions ( WxHxD )
- Etheret (CAN, RS485 Optional)

  Communication
- ≤22T

  Weight
