98.6%
Max. Efficiency
-
IP66
Degree of protection
-
4000m
Max. operating altitude
-
Transformerless
Topology
Product Introduction

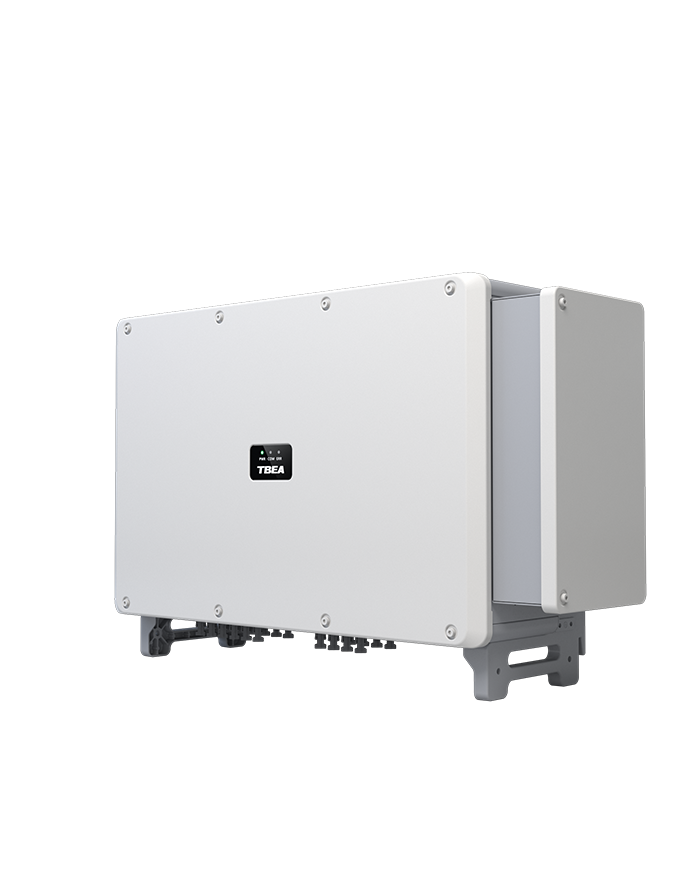

TS 75~110 KTL-A10 1100V three-phase on-grid string inverter is to convert the DC electricity generated by the solar array into AC electricity and feed it into the grid. This series is primarily suited for large scale commercial and industrial applications like Manufacturing Facilities/ Warehouses and Distribution Centers, etc.
Product Advantage
-
-
Best Benefits
MPPT Global scanning strategy, max. efficiency 98.6%.
MPPT current 32A, compatible with all PV modules.
1.1 times output overload for high yield.
-
Safe and Reliable
AFCl Function, reduced fault coverage.
IP66 & C5, robust environment adaptability.
Surge Protection: DC & AC Type II.
-
Intelligent Friendly
String level current detection, improving fault warning timely rate.
Intelligent energy management platform, improving O&M efficiency.
-
-
Best Benefits
MPPT Global scanning strategy, max. efficiency 98.6%.
MPPT current 32A, compatible with all PV modules.
1.1 times output overload for high yield.
-
Safe and Reliable
AFCl Function, reduced fault coverage.
IP66 & C5, robust environment adaptability.
Surge Protection: DC & AC Type II.
-
Intelligent Friendly
String level current detection, improving fault warning timely rate.
Intelligent energy management platform, improving O&M efficiency.
Core Parameters
-
-
98.6%
Max. efficiency
-
32A
Max. input current for each MPPT
-
1100V
Max. input voltage
-
8 (TS75/ 80KTL-A10)
10 (TS100/ 110KTL-A10)No. of MPP trackers
-
2
Max. input No. per MPPT
-
220V/380V; 230V/400V; 240V/415V
Rated AC voltage
-
984* 640* 330mm
Dimensions (W / H / D)
-
86kg
Weight
-
-
