>99.0%
Max. efficiency
-
>98.7%
Max. European efficiency
-
IP54
Protection
-
1kVA, 30min
UPS
Product Introduction

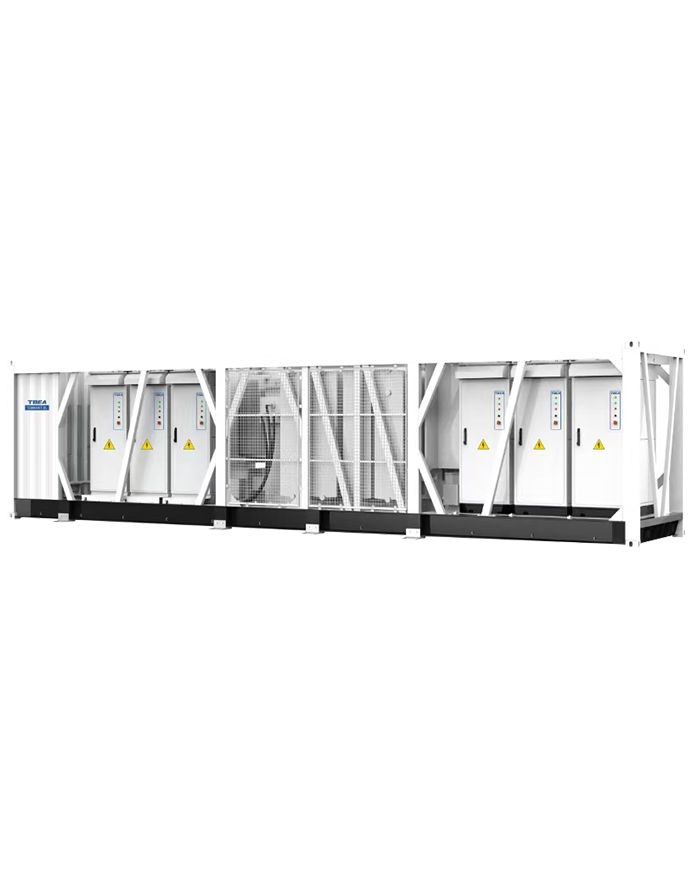

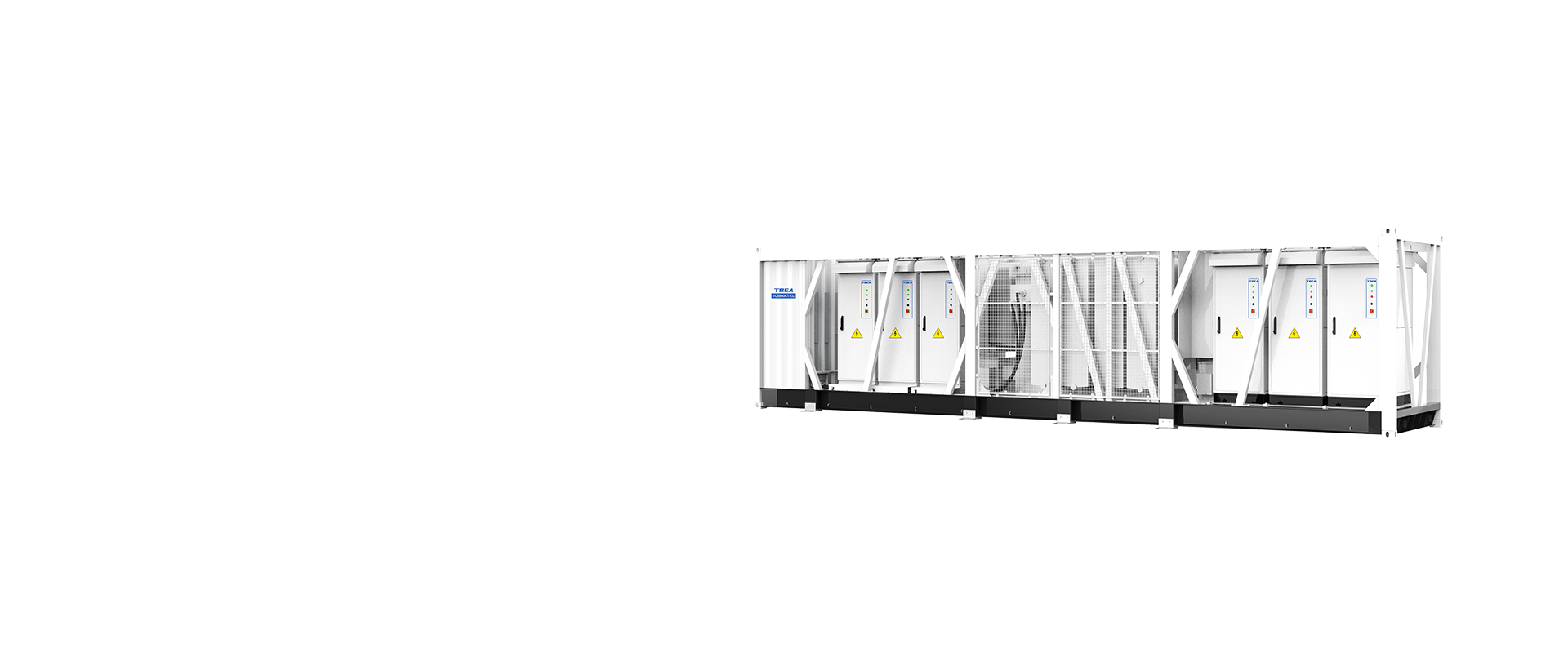

TC8800KT-EL/TC8800KT-EL-50 Inverter Transformer Station integrates 4.4MW series inverter, transformer, RMU, auxiliary panel and other equipment into a standard 40 feet container to convert low-voltage DC power from photovoltaic modules into medium-voltage AC power and feed it into the grid. It provides a highly integrated power conversion and distribution solution for the medium voltage grid-connected scenario of photovoltaic ground power stations.
Product Advantage
-
-
Efficient and Economical
Compatible with 182/210 solar module, 36/42/48 DC inputs, support 1.8 DC/AC ratio.
Max. efficiency >99%, European efficiency >98.7%.
High capacity, reduce quantity of MV equipment,reduce CAPEX.
-
Stable and Reliable
IP55/IP65 protection, C4/C5 anti-corrosion, adaptable to harsh environments.
Scientific thermal design, and effective cooling to improve performance.
-
Integrated and Convenient
Prefabricated and tested, easy transportation and installation.
Modular inveiter design, easy for O&M replacement and maintenance.
-
Supportive to Grid
Comply with standard IEC61727, IEC62109-1/2,IEC62116, IEC62271-200/202, IEC60076, IEC61439, SCR - 1.0.
Low/high voltage ride through (U/HVRT) .
Active & reactive power and power factor control.
-
-
Efficient and Economical
Compatible with 182/210 solar module, 36/42/48 DC inputs, support 1.8 DC/AC ratio.
Max. efficiency >99%, European efficiency >98.7%.
High capacity, reduce quantity of MV equipment,reduce CAPEX.
-
Stable and Reliable
IP55/IP65 protection, C4/C5 anti-corrosion, adaptable to harsh environments.
Scientific thermal design, and effective cooling to improve performance.
-
Integrated and Convenient
Prefabricated and tested, easy transportation and installation.
Modular inveiter design, easy for O&M replacement and maintenance.
-
Supportive to Grid
Comply with standard IEC61727, IEC62109-1/2,IEC62116, IEC62271-200/202, IEC60076, IEC61439, SCR - 1.0.
Low/high voltage ride through (U/HVRT) .
Active & reactive power and power factor control.
Core Parameters
-
-
TC8800KT-EL/TC8800KT-EL-50
Model
-
12192mm x 2896mm x 2438mm, standard 40-foot container
Dimension（W*H*D）
-
9.5% (deviation ±10%)
Short circuit impedance
-
IP54
Protection
-
-35 ~ 60°C（＞45°C derating）/ -35 ~ 60°C（＞51°C derating）
Temperature range
-
0% ~ 100% (no condensing)
Relative humidity range
-
1kVA, 30min
UPS
-
1500m
＞1500m（optional）Max. operating altitude
-
RS485 / Ethernet
Communication Interface
-
IEC61727, IEC62109-1/2, IEC62116, IEC62271-200/202, IEC60076, IEC61439
Compliance
-
-
