TE215/235/250K-HV

Download PDF

215kW / 235kW / 250kW

Rated AC Active Power
IP66

IP Rating
-40℃~60℃

Operating Temperature Range
690V

Rated Grid Voltage

Product Introduction

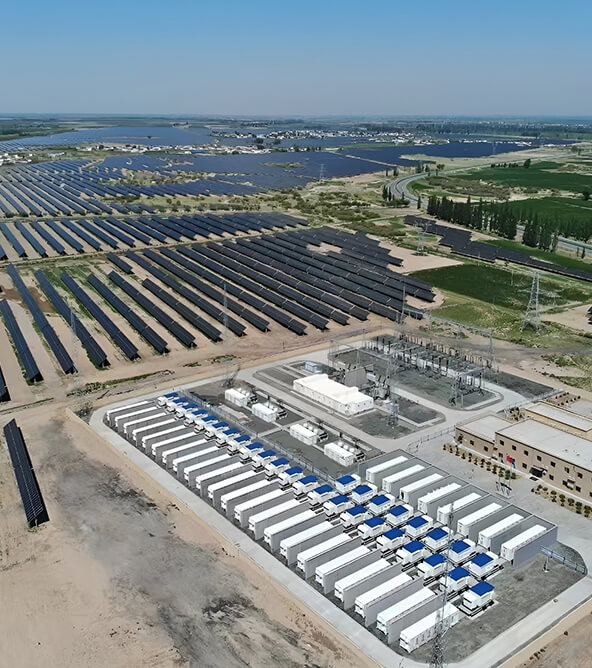

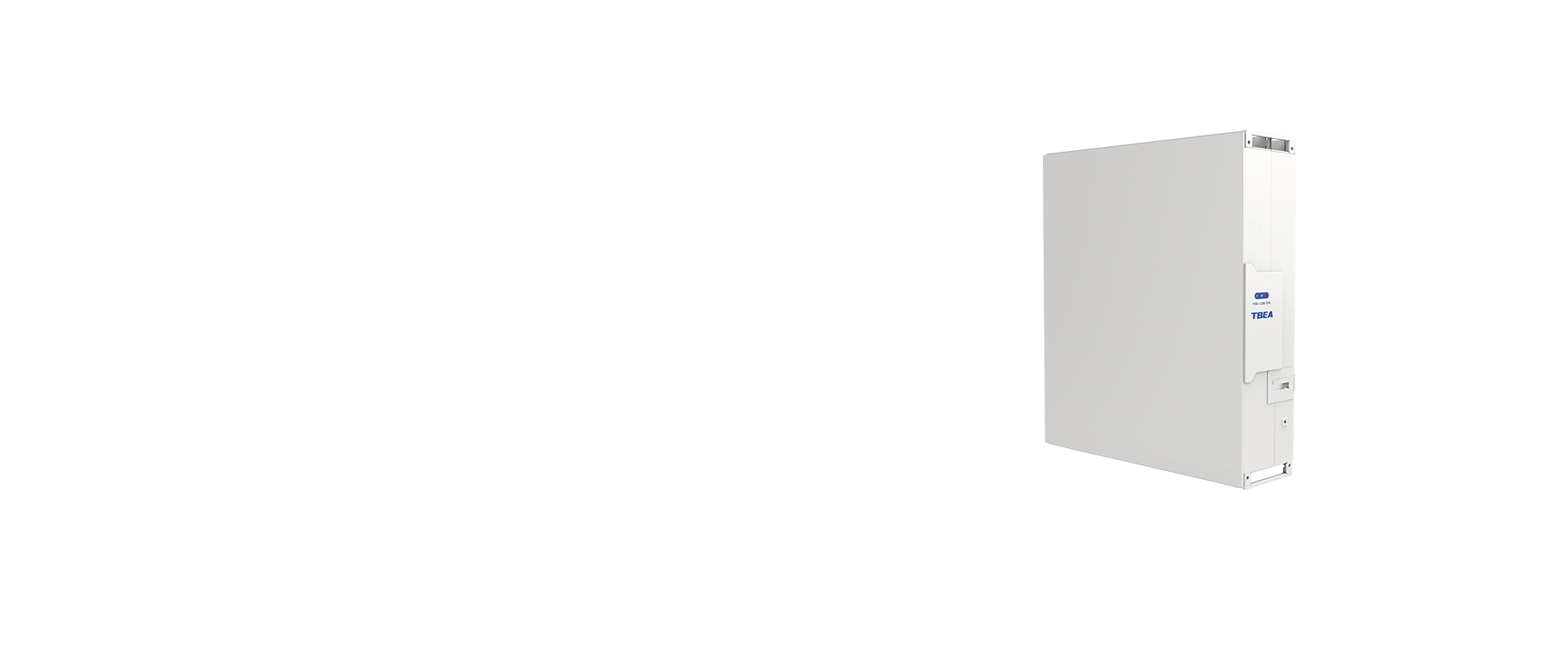

215kW String PCS, IGBT use an industry-leading brand, boasts excellent thermal performance and electrical parameter advantages, along with high product consistency and reliability. It features a single rack management solution that eliminates the impact of circulating currents, reduces system losses, and enhances system efficiency. This system allows for electrical isolation between racks and can automatically isolate a single rack in case of failure without impacting the operation of other rack. The modular PCS is rail-mounted, plug-and-play, and easy for operations and maintenance. It also supports remote upgrades and web debugging, which increases discharge capacity and improves efficiency.

Download PDF

Product Advantage

- High Reliabilit

  IGBT industry-leading brand.
  IP66 protection grade and C5 corrosion proof grade.
- High Availability

  High altitude adaptability.
  Air force cooling and rated power output @ 55℃.
- Easy Maintenance

  Modular design.
  Side junction box design, easy to install.
- High Intelligent

  Multi-machine coordinated control.
  Fast power scheduling, primary frequency modulation.

High Reliabilit

IGBT industry-leading brand.
IP66 protection grade and C5 corrosion proof grade.
High Availability

High altitude adaptability.
Air force cooling and rated power output @ 55℃.
Easy Maintenance

Modular design.
Side junction box design, easy to install.
High Intelligent

Multi-machine coordinated control.
Fast power scheduling, primary frequency modulation.

Core Parameters

- 99.2%

  Max. Efficiency (EU)
- 1500V

  Max. DC Voltage
- 1040-1500V

  Operating DC Voltage Range
- 215kW / 235kW / 250kW

  Rated AC Active Power
- 279.5kVA

  Max.Apparent Power
- 180A / 196.6A / 209A

  Rated AC Current
- 234A

  Max.AC Current
- 690V

  Rated Grid Voltage
- -10%-10% (settable)

  Allowable Grid Voltage Range
- 50Hz/60Hz

  Rated AC Grid Frequency
- <3% (at rated power)

  THDi
- -1(Leading)~1(Lagging)

  Power Factor Range
- Smart Air Cooling

  Cooling Method
- IP 66

  IP Rating
- 0-100% (no condensation)

  Relative Humidity
- C5

  Corrosion Prevention
- 4000m

  Altitude
- -40°C-60°C

  Operating Temperature Range
- 213*900*740mm

  Dimensions(W×H×D)
- IEC62477, IEC61000, IEC61683, IEC61727, IEC62116

  Standard
