98.6%
Max. Efficiency
-
IP66
Degree of protection
-
3000m
Max. operating altitude
-
Transformerless
Topology
Product Introduction

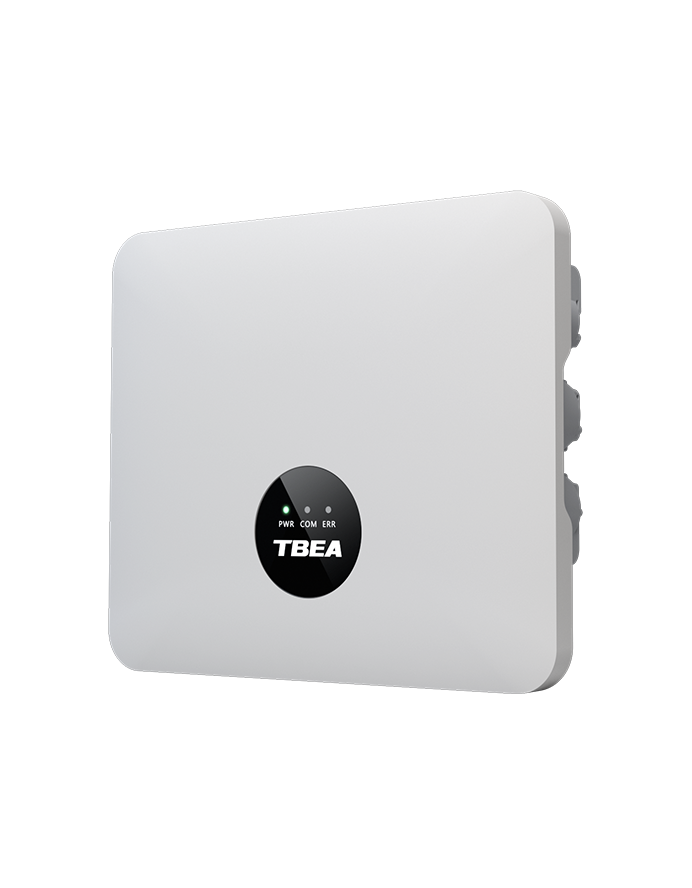

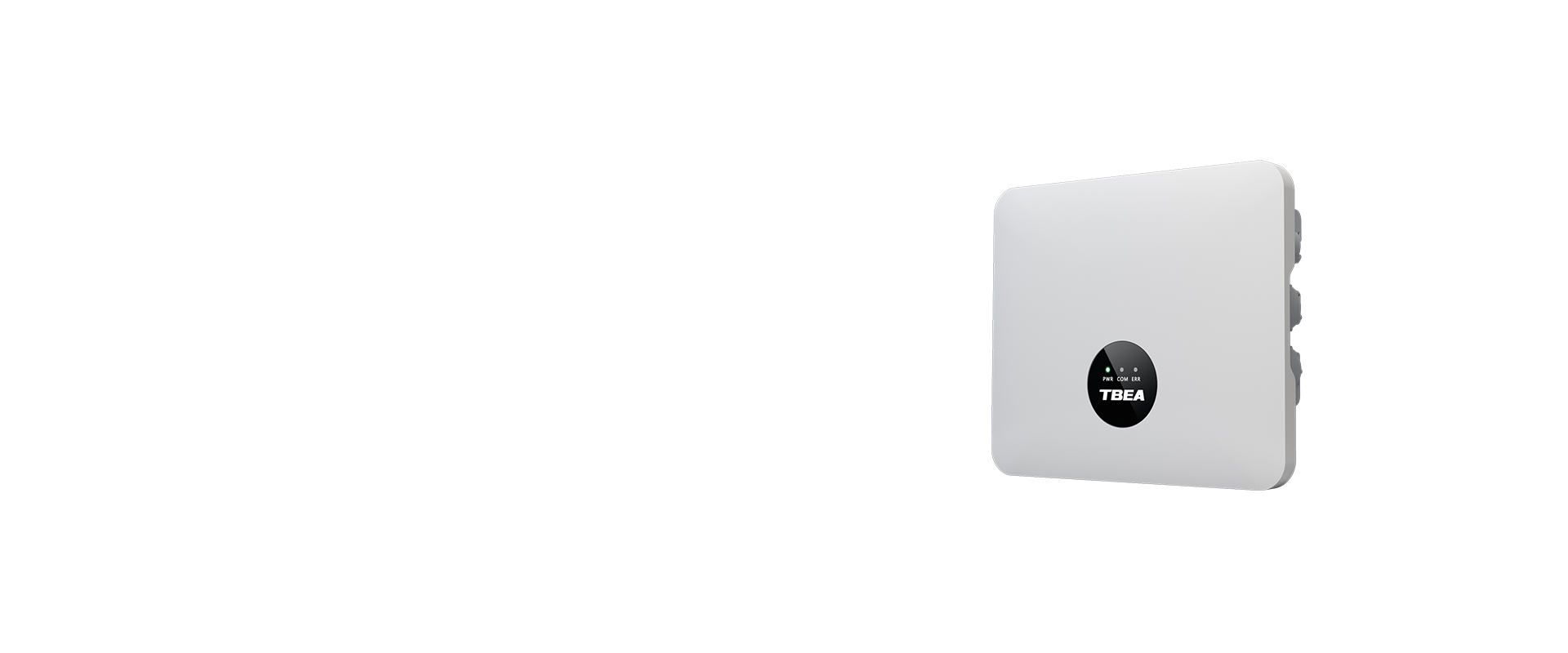

TS12~20KTL-A20 1100V three-phase on-grid string inverter is to convert the DC electricity generated by the PV panels into AC electricity and feed it into the grid. This series of products features safety and reliability, grid compatibility, efficient power generation, and intelligent O&M, making them particularly suitable for applications such as residential rooftops and villas.
Product Advantage
-
-
Best Benefits
Max. efficiency 98.6%.
1.1 times output overload for high yield.
-
Compatible with All PV Modules
Multi MPPT design, multi-orientation adaptation.
Longer grid connection time with wider AC voltage range.
-
Always Reliable
AFCl Function, reduced fault coverage.
IP66 & C5, robust environment adaptability.
Surge Protection: DC & AC Type II.
-
Intelligent Friendly
String level current detection, improve fault warning timely rate.
Intelligent energy management platform, improving O&M efficiency.
-
-
Best Benefits
Max. efficiency 98.6%.
1.1 times output overload for high yield.
-
Compatible with All PV Modules
Multi MPPT design, multi-orientation adaptation.
Longer grid connection time with wider AC voltage range.
-
Always Reliable
AFCl Function, reduced fault coverage.
IP66 & C5, robust environment adaptability.
Surge Protection: DC & AC Type II.
-
Intelligent Friendly
String level current detection, improve fault warning timely rate.
Intelligent energy management platform, improving O&M efficiency.
Core Parameters
-
-
98.6%
Max. efficiency
-
32A/ 20A(TS12~15KTL-A20)
32A/ 32A(TS17~20KTL-A20)Max. input current for each MPPT
-
1100V
Max. input voltage
-
2(TS12~15KTL-A20)
2(TS17~20KTL-A20)No. of MPP trackers
-
2/1(TS12~15KTL-A20)
2 (TS17~20KTL-A20)Max. input No. per MPPT
-
220V/380V; 230V/400V; 240V/415V
Rated AC voltage
-
503*435*183mm
Dimensions (W / H / D)
-
17.3kg(TS12~15KTL-A20)
18.6kg (TS17~20KTL-A20)Weight
-
-
