Comprehensive energy solution for large-scale ground-mounted power stations

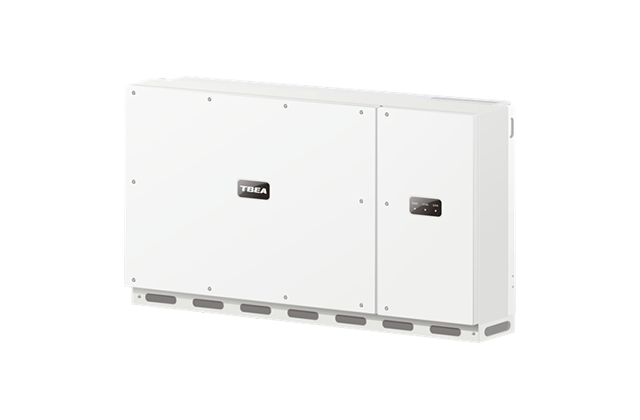

Large-scale ground-mounted photovoltaic power stations refer to large-scale photovoltaic power generation systems that are centrally built on vast ground (such as deserts, Gobi Desert, tidal flats, and wastlands). Our company's TS330KTL-HV-C1 features high capacity, high conversion efficiency, a wide DC input voltage range, and the industry's best adaptability to extremely weak networks. It can better match the weak networks and series compensation scenarios of large bases such as sand and the Gobi Desert, ensuring reliable operation.TS330KTL-HV-C1 supports a maximum of 30 strings of 6 MPPTs, with a single-channel maximum current of 75A. It is perfectly adapted to mainstream 182/210 and other types of photovoltaic modules, supports an ultra-high capacity ratio of 1.6, and brings better benefits to power stations. At the same time, designs such as high-precision IV curve scanning, intelligent DC disconnecting system, and intelligent air duct management have greatly supported the safe and reliable operation of the power station, improved operation and maintenance efficiency, reduced operation and maintenance costs, and maximized customer value.

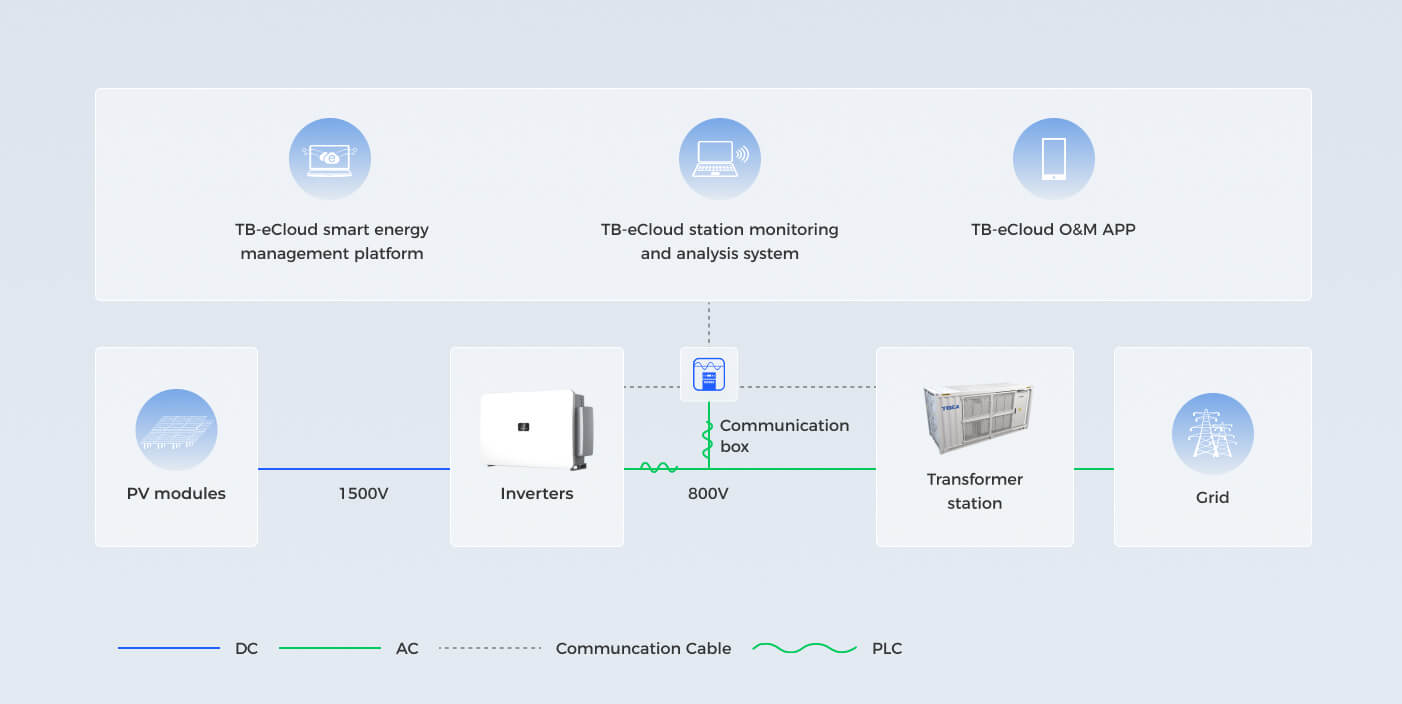

System Diagram

Programme Advantages

Grid-Friendly

Specific sub-harmonic suppression technology to effectively reduce current harmonics.
Equipped with SVG function to support the power grid.
Rapid active power response to meet the dispatching requirements of power plants.
Safe and Reliable

Superior overall protection performance to adapt to various harsh environments (IP66 protection level, C5 anti-corrosion level).
Intelligent zoned heat exchange and dissipation design.
High-Efficiency Generation

Intelligent MPPT control strategy with a maximum conversion efficiency of 99.02%.
One MPPT for every 4/5 string inputs, perfectly matching various mainstream photovoltaic modules and effectively reducing the impact of string mismatch.
Excellent temperature derating characteristics to reliably ensure power generation in high-temperature environments.
Intelligent O&M

High-precision I-V curve scanning, analysis and diagnosis function.
PID protection function to safeguard the health of modules.
Active fire protection function to build a safety barrier for power plants.
Intelligent dust removal boosts O&M efficiency.

Application scenario

Power Stations in Desert, Gobi and Wilderness Areas
Power Station for Mountain Areas
Offshore Photovoltaic Power Station
Grassland Power Station (Preparation)

Power Stations in Desert, Gobi and Wilderness Areas

Desert areas have vast land resources and abundant solar energy resources.For example, there are large desert, Gobi and wilderness areas in northwest China, the Middle East, and Africa. These places are sparsely populated and have limited other ways to use the land, making them very suitable for the construction of large-scale ground photovoltaic power stations.

Power Station for Mountain Areas

Photovoltaic power stations can also be built in mountainous areas with excellent terrain conditions and solar energy resources.For example, on some south-facing hillsides at higher altitudes, the sunlight duration and intensity can better meet the needs of photovoltaic power generation.

Offshore Photovoltaic Power Station

Coastal tidal flats and offshore areas often have sufficient sunshine and the transmission cost is relatively low.Areas like the estuary mudflats in Brazil, the coastal mudflats in Jiangsu, China, and offshore areas with relatively stable sea surfaces offer good conditions for building photovoltaic power stations.

Grassland Power Station (Preparation)

Photovoltaic power generation can be combined with grassland ecological protection through reasonable layout and infrastructure construction.The generated electricity can also provide power support for local animal husbandry and other industries, such as feed processing and power supply for livestock drinking water facilities, to promote the sustainable development of the local economy.
