TS 3~10 KTL-A20

Download PDF

98.3% / 98.6%

Max. Efficiency
IP66

Degree of protection
3000m

Max. operating altitude
Transformerless

Topology

Product Introduction

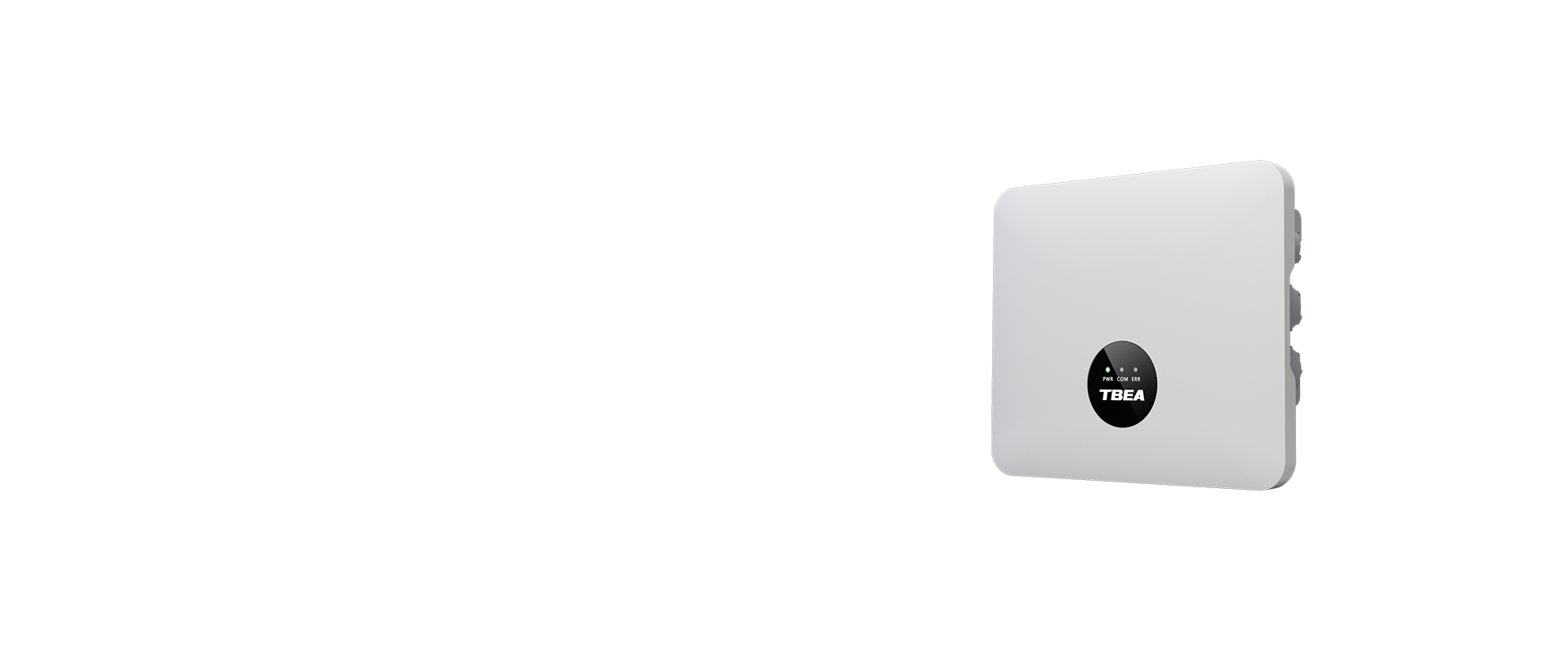

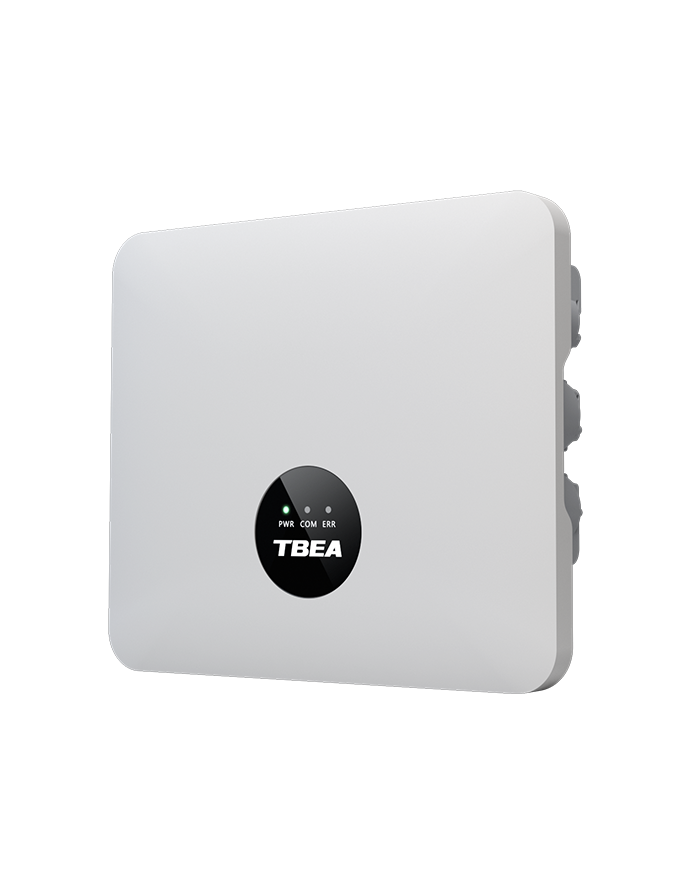

TS3~10KTL-A20 1100V three-phase on-grid string inverter is to convert the DC electricity generated by the PV panels into AC electricity and feed it into the grid. This series of products features safety and reliability, grid compatibility, efficient power generation, and intelligent O&M, making them particularly suitable for applications such as residential rooftops and villas.

Download PDF

Product Advantage

- Best Benefits

  Max. efficiency 98.6%.
  1.1 times output overload for high yield.
- Compatible with All PV Modules

  Multi MPPT design, multi-orientation adaptation.
  Longer grid connection time with wider AC voltage range.
- Always Reliable

  AFCl Function, reduced fault coverage.
  IP66 & C5, robust environment adaptability.
  Surge Protection: DC & AC Type II.
- Intelligent Friendly

  String level current detection, improve fault warning timely rate.
  Intelligent energy management platform, improving O&M efficiency.

Best Benefits

Max. efficiency 98.6%.
1.1 times output overload for high yield.
Compatible with All PV Modules

Multi MPPT design, multi-orientation adaptation.
Longer grid connection time with wider AC voltage range.
Always Reliable

AFCl Function, reduced fault coverage.
IP66 & C5, robust environment adaptability.
Surge Protection: DC & AC Type II.
Intelligent Friendly

String level current detection, improve fault warning timely rate.
Intelligent energy management platform, improving O&M efficiency.

Core Parameters

- 98.3% / 98.6%

  Max. efficiency
- 16A/ 16A(TS3~6KTL-A20)
  20A/ 16A(TS8~10KTL-A20)

  Max. input current for each MPPT
- 1100V

  Max. input voltage
- 2

  No. of MPP trackers
- 1

  Max. input No. per MPPT
- 220V/380V; 230V/400V; 240V/415V

  Rated AC voltage
- 503*435*183mm

  Dimensions (W / H / D)
- 16kg

  Weight

98.3% / 98.6%

Max. efficiency
16A/ 16A(TS3~6KTL-A20)
20A/ 16A(TS8~10KTL-A20)

Max. input current for each MPPT
1100V

Max. input voltage
2

No. of MPP trackers
1

Max. input No. per MPPT
220V/380V; 230V/400V; 240V/415V

Rated AC voltage
503*435*183mm

Dimensions (W / H / D)
16kg

Weight
