800V
Rated input voltage
-
50Hz / 60Hz
Rated frequency
-
±2×2.5%
Transformer tappings
-
C4 / C5 (optional)
Anti-corrosion degree
Product Introduction

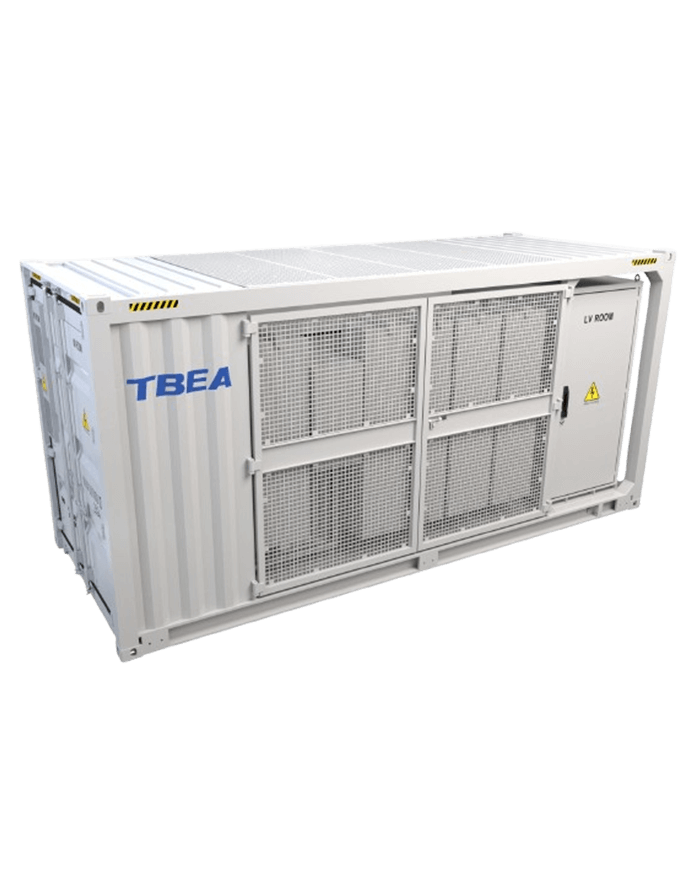

TS3000/6000/9000KT-EL Smart Transformer Station is matched with TS360KTL series string inverter application. It integrates low-voltage cabinet, transformer, RMU, auxiliary and other equipment into a standard 20-ft container, make the low-voltage 800V power output from the string inverter stepped up and fed into the grid. To provide the overall solution for the medium voltage grid connected scenario of utility-scale PV power stations.
Product Advantage
-
-
Integrated and Economic
Prefabricated and pre-tested, simple installation onsite without internal cabling.
Standard container design for easy transportation.
High capacity, reduce quantity of MV equipment, save investment of the whole plant.
-
Stable and Reliable
IP54 protection for LV and MV room, IP68 for transformer body.
C4/C5 anti-corrosion, adaptable to harsh environments.
-
Efficient and Smart
Low power consumption, Tier 1/2 PEI efficiency.
LV panel, transformer and RMU real-time monitored, LV panel and RMU remote controlled.
-
Grid Support
Comply with standard IEC60076, IEC62271-200/202, IEC61439, EN50588-1.
MV voltage up to 35kV.
-
-
Integrated and Economic
Prefabricated and pre-tested, simple installation onsite without internal cabling.
Standard container design for easy transportation.
High capacity, reduce quantity of MV equipment, save investment of the whole plant.
-
Stable and Reliable
IP54 protection for LV and MV room, IP68 for transformer body.
C4/C5 anti-corrosion, adaptable to harsh environments.
-
Efficient and Smart
Low power consumption, Tier 1/2 PEI efficiency.
LV panel, transformer and RMU real-time monitored, LV panel and RMU remote controlled.
-
Grid Support
Comply with standard IEC60076, IEC62271-200/202, IEC61439, EN50588-1.
MV voltage up to 35kV.
Core Parameters
-
-
10/20/28
Max. LV inputs
-
3630kVA@30°C
3300kVA@40°C
3000kVA@50°C
7260kVA@30°C
6600kVA@40°C
6000kVA@50°C
10164kVA@30°C
9240kVA@40°C
8400kVA@50°CAC power
-
800V
Rated input voltage
-
10kV~35kV / 20kV~35kV
Rated output voltage
-
50Hz/60Hz
Rated frequency
-
Oil-immersed, fullysealed, Dy11
Oil-immersed, fullysealed, Dy11y11Transformer type
-
±2×2.5%
Transformer tappings
-
ONAN
Transformer cooling type
-
>99% (standard); tier1 / tier2 (optional)
Transformer efficiency
-
SF6 gas insulated
RMU Type
-
Dry type, 5kVA, 800V / 400V, Dyn11, level H
Auxiliary transformer
-
6058mm × 2896mm × 2438mm, standard 20-foot container
Dimension
-
-
-
<18T / <24T / <28T
Weight
-
-25°C~60°C
Temperature range
-
0%~95%
Relative humidity
-
1000m (standard)
＞1000m (optional)Max.operating altitude
-
-
