2100V
Rated Voltage
-
<150Hz
Switching Frequency
-
<±10%@2100V
Bus Ripple Voltage Fluctuation Range
-
2800V/12mF、 0~+5%
DC Capacitor
Product Introduction

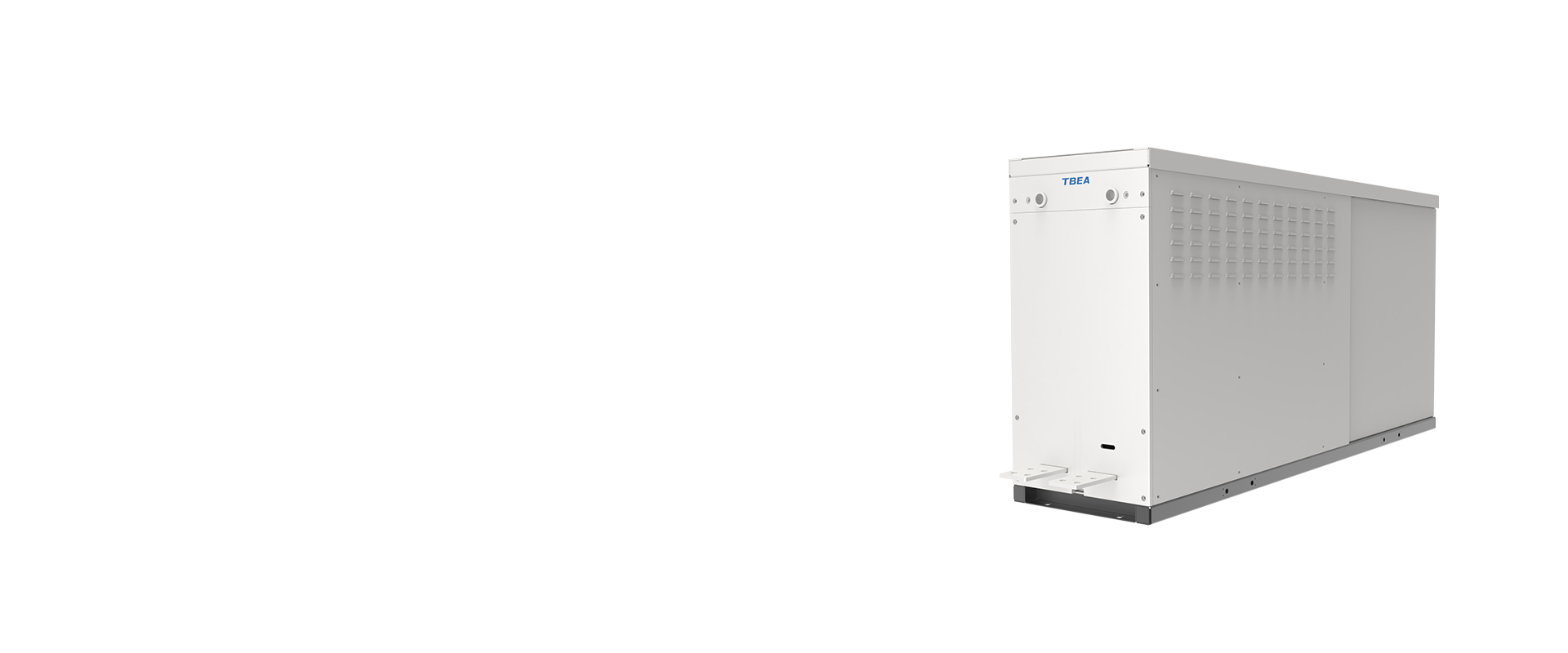

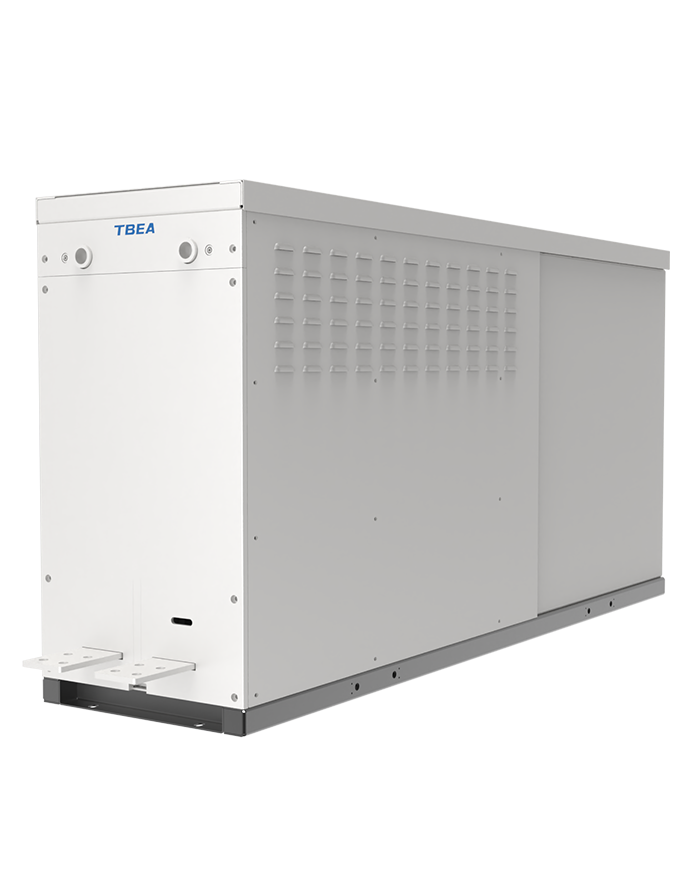

To address the bottleneck issue of domestic production for critical components of flexible DC transmission converter valves, TBEA Xi'an Electric Technology has successfully developed the "Fully Domestic 4.5kV/2kA IGBT Flexible DC Converter Valve Assembly" device. The converter valve power circuit is entirely designed with domestically produced components, resolving the reliability issues in engineering applications. The product has passed the new product technology appraisal organized by the China Machinery Industry Federation, with its performance matching that of imported converter valve products. This achievement ensures that key components of flexible DC converter valves are autonomously controllable and meet engineering application requirements.
Core Parameters
-
-
2100V
Rated Voltage
-
1237A(625Adc+1028Aac-rms_50Hz+290Aac-rms_100Hz)
Rated Current
-
1.05p.u (1299A) long-term operation
1.2p.u (1484A) Operation for 10sMaximum Operating Current
-
Valve component overcurrent cut-off capability: 3050V/4000A
Power module single pulse overcurrent cut-off capability: 3400V/4000ACurrent Withstand Capability
-
<150Hz
Switching Frequency
-
<±10%@2100V
Bus Ripple Voltage Fluctuation Range
-
2800V/12mF、0~+5%
DC Capacitor
-
Operating voltage range: 300Vdc to 4500Vdc
Output: 400V, 15V1, 15V2
Output voltage accuracy: <+1%, for 20ms without power failureDraw-out Power Supply
-
-
2100V
Rated Voltage
-
1237A(625Adc+1028Aac-rms_50Hz+290Aac-rms_100Hz)
Rated Current
-
1.05p.u (1299A) long-term operation
1.2p.u (1484A) Operation for 10sMaximum Operating Current
-
Valve component overcurrent cut-off capability: 3050V/4000A
Power module single pulse overcurrent cut-off capability: 3400V/4000ACurrent Withstand Capability
-
<150Hz
Switching Frequency
-
<±10%@2100V
Bus Ripple Voltage Fluctuation Range
-
2800V/12mF、0~+5%
DC Capacitor
-
Operating voltage range: 300Vdc to 4500Vdc
Output: 400V, 15V1, 15V2
Output voltage accuracy: <+1%, for 20ms without power failureDraw-out Power Supply
