Key Technologies of Flexible Multi-Level Converter Chain (MDC)

Download PDF

20

Active Power
51.54MVA

Apparent Power
+15 kV

DC Voltage
1667A

Direct Current

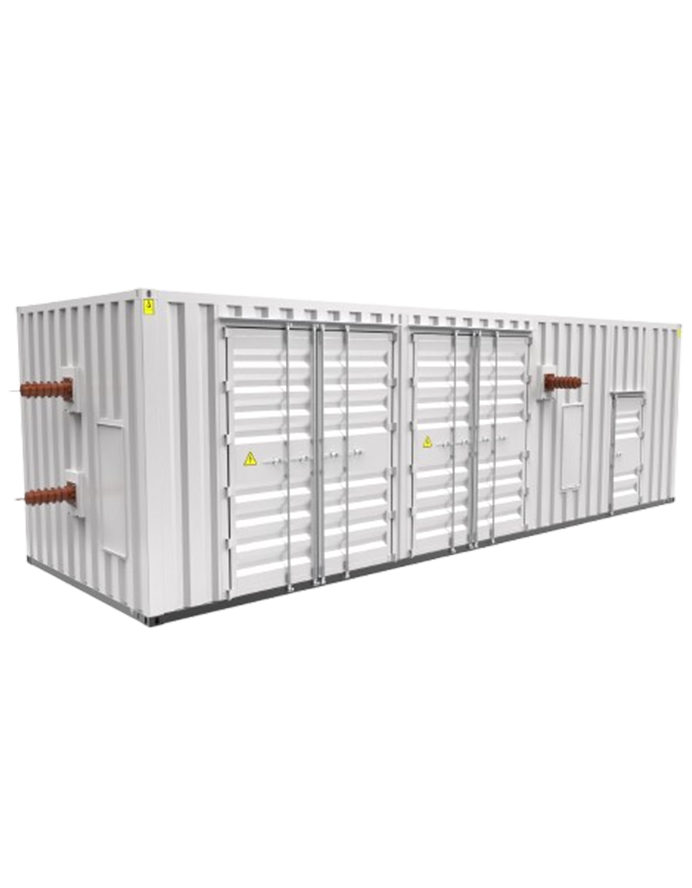

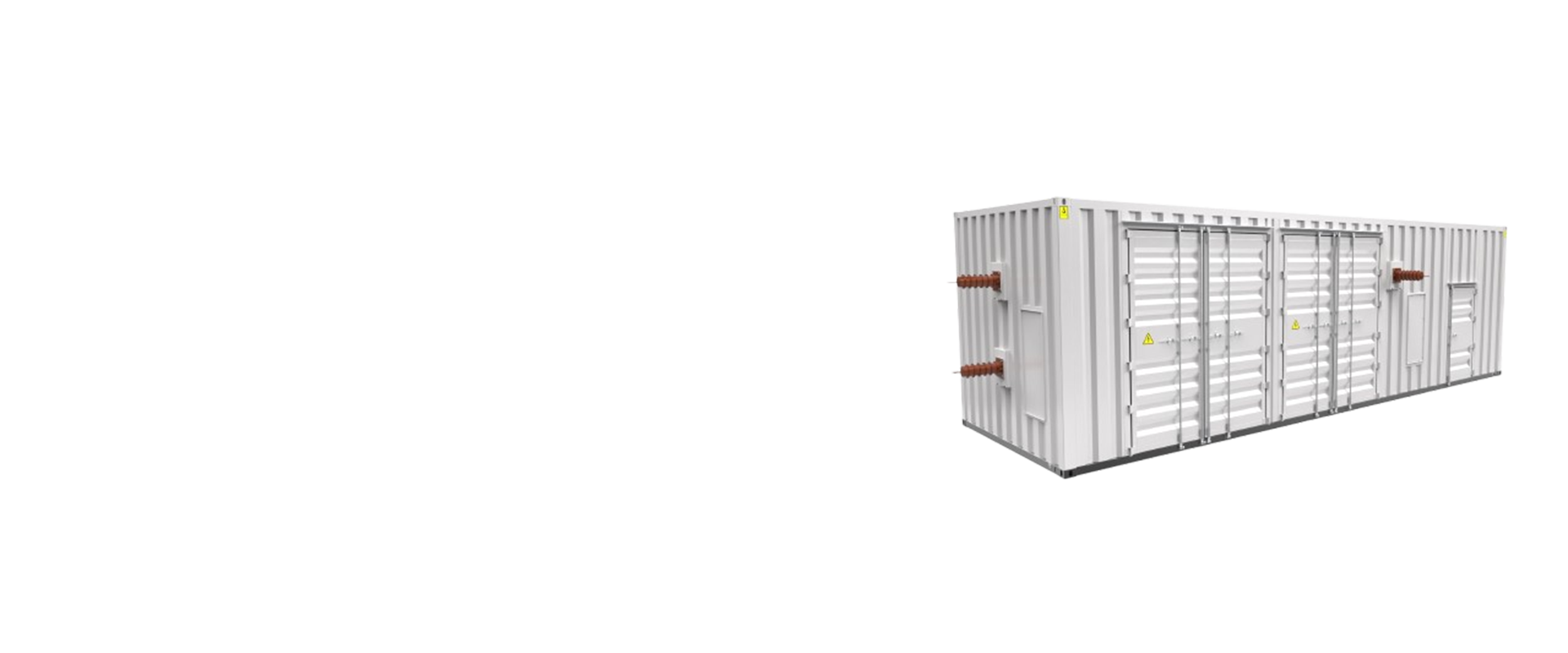

Product Introduction

Module capacitor usage is reduced by 80%;

Number of semiconductor devices is reduced by 25%;

Overall solution cost is reduced by over 30%;

The H-bridge part of the device, due to its zero-voltage switching characteristics, reduces overall machine loss by 50%;

This product can be applied in scenarios such as medium-voltage photovoltaic DC grid connection and long distance offshore wind power transmission, significantly enhancing conversion efficiency and increasing new energy power generation

Download PDF

Core Parameters

- 50MW

  Active Power
- 12.5 MVar, configured at 25% active power

  Reactive Power
- 51.54MVA

  Apparent Power
- ±15 kV

  DC Voltage
- 1667A

  Direct Current
- 21.36 kV phase, 37 kV line voltage

  Rated AC Voltage on Grid Side (Phase, Rms)
- 804A

  Rated AC Current on Grid Side
- 893A, running at rated 37 kV at 0.9 p.u., 1.01 times overload, 893A=804A*1.1*1.01

  Maximum AC Current on Grid Side (Phase, Rms)
- 10kV

  Rated AC Voltage on Valve Side (Phase, Rms)
- 1718A

  AC Current on Calve Cide (Phase, Rms)
- 1908A

  Maximum AC Current on Valve Side

50MW

Active Power
12.5 MVar, configured at 25% active power

Reactive Power
51.54MVA

Apparent Power
±15 kV

DC Voltage
1667A

Direct Current
21.36 kV phase, 37 kV line voltage

Rated AC Voltage on Grid Side (Phase, Rms)
804A

Rated AC Current on Grid Side
893A, running at rated 37 kV at 0.9 p.u., 1.01 times overload, 893A=804A*1.1*1.01

Maximum AC Current on Grid Side (Phase, Rms)
10kV

Rated AC Voltage on Valve Side (Phase, Rms)
1718A

AC Current on Calve Cide (Phase, Rms)
1908A

Maximum AC Current on Valve Side
