＞99.0%
Max. Efficiency
-
＞98.7%
Max. European Efficiency
-
IP65
Protection Degree
-
1500V
Max. Input Voltage
Product Introduction

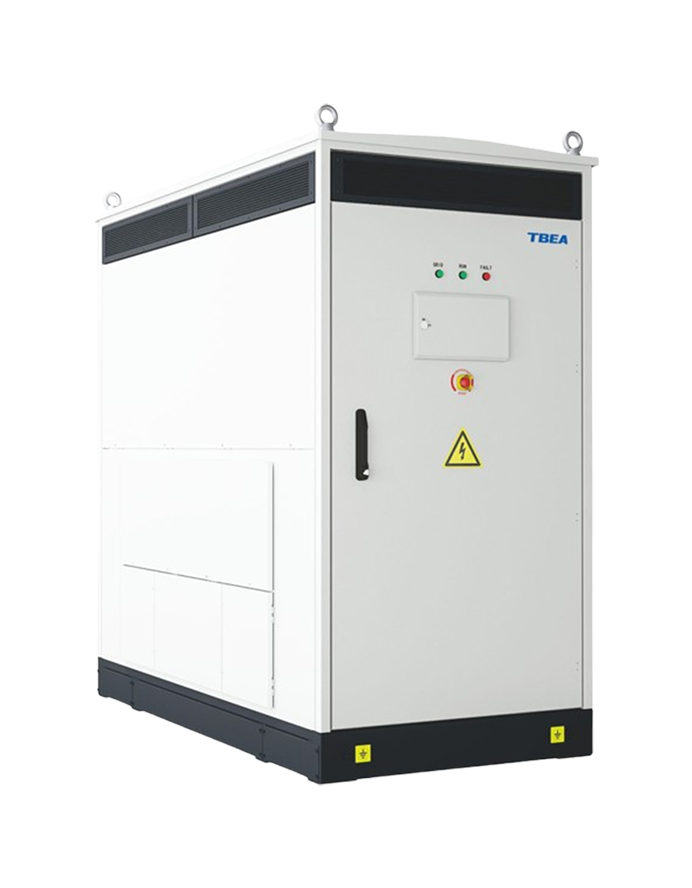

1500V 3.125MW outdoor PV grid-connected inverter，maximum DC input voltage is 1500V, AC rated output voltage is 630V, rated power is 3125kW@50℃, supporting 2 MPPT inputs, 8 / 9 / 10 PV string input for each MPPT, suitable for 182 / 210 modules;
Medium voltage inverter transformer can be integrated on the basis of this inverter product . It is mainly used in the grid-connected system of utility-scale PV stations at home and abroad.
Product Advantage
-
-
Support to Grid
Specific harmonic control technology, effectively reducing THDi.
Impedance adaptive technology, supporting weak grid network SCR - 1.0.
Night SVG (optional), better grid supporting.
Fast active & reactive power response, supporting power dispatch.
-
Stable and Reliable
IP55 / IP65 & C4 (C5 optional), robust environment adaptability.
Dual air duct heat dissipation.
-
Efficient and Economical
Maximum efficiency 99%, European efficiency 98.7%.
Optimized MPPT algorithm, ensuring maximum power generation efficiency.
16 / 18 / 20 inputs optional, match 182 / 210 bifacial modules perfectly.
-
Integrated and Convenient
Modular design of power modules, easy for maintenance.
Fan, capacitor life prediction, transition from passive to active maintenance.
-
-
Support to Grid
Specific harmonic control technology, effectively reducing THDi.
Impedance adaptive technology, supporting weak grid network SCR - 1.0.
Night SVG (optional), better grid supporting.
Fast active & reactive power response, supporting power dispatch.
-
Stable and Reliable
IP55 / IP65 & C4 (C5 optional), robust environment adaptability.
Dual air duct heat dissipation.
-
Efficient and Economical
Maximum efficiency 99%, European efficiency 98.7%.
Optimized MPPT algorithm, ensuring maximum power generation efficiency.
16 / 18 / 20 inputs optional, match 182 / 210 bifacial modules perfectly.
-
Integrated and Convenient
Modular design of power modules, easy for maintenance.
Fan, capacitor life prediction, transition from passive to active maintenance.
Core Parameters
-
-
3600KF
Model
-
>99.0%
Max.efficiency
-
>98.7%
Max. european efficiency
-
1500V
Max. input voltage
-
900V
Min. input voltage/startup voltage
-
900V~1300V
MPPT voltage range at nominal power
-
2
Number of MPPT
-
16/18/20
Number of inputs
-
3125kVA
Nominal output power
-
3594kVA
Max. output apparent power
-
630V/3W+PE
Nominal output voltage
-
50Hz/60Hz
Nominal output frequency
-
-
-
0.8(leading)~0.8(lagging)
Adjustable power factor range
-
<3%ln (at nominal power)
Max. harmonic content
-
≤0.5%In
DC current injection
-
-
